2-8mm double-sided anti-UV plate performance

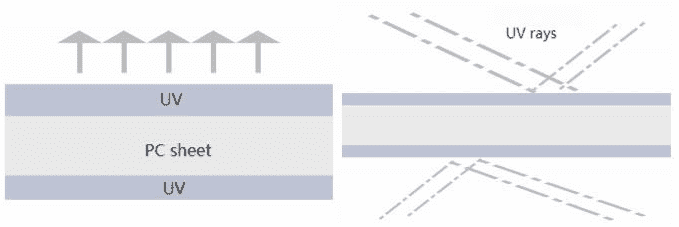

Schematic diagram of large blister plate
Polycarbonate Endurance Plate Introduce
Pc Endurance Plate (also Known As Pc, Polycarbonate Solid Sheet, Bulletproof Glass, Lung Sheet And Solid Sheet Kapoor, Aviation Perspective) Is High Can Engineering Plastics Polycarbonate Or Carbon – Acid Polyester, Is A New Kind Of Environmental Protection, Powerful Sound Insulation, Durable, Waterproof, Pervious To Light, Energy Saving The Comprehensive Performance Of Outstanding Engineering Material, Pc Board Surface Is Smooth And Glittering And Translucent, Endurance, Cold And Hot Bending, Colour And Lustre Is Uniform, Stable And Shading, Break Hot Sex Is Good, The Material Quality Is Stable, Use Fixed Number Of Year For A Long Time, Long Service Life. It Is Widely Used In Residential, Trade Show, The Daylighting Of The Public Facilities Such As Buildings, Roads, Sound Insulation, Plants, Indoor Space. Is The Ideal Environmental Protection, Energy Saving Light Tent Material, One Of The Modern Decoration Industry And Industry Widely Admired And Recognition Of A New Generation Of Products.
Product Advantages
Through co-extrusion technology strong uv protection layer and polycarbonate base material evenly on merge into an Organic whole,
make the plank is more durable.
Have extremely stable elastic deformation ability, even if installed above the supporting structure of the spacing is bigger, still able to withstand wind load.
Polycarbonate plates are produced in strict accordance with national standards.
Can be customized for you polycarbonate sheet and special design installation solutions.
Range Of Application
Architecture, industrial protection and building lighting and the rain canopy.
Railway stations, airports, ports and ground crossings of the rest hall, the pedestrian corridor of the ceiling.Garden, agricultural greenhouse, such as breeding and planting flowers greenhouses.
Sports venues and amusement places of ceiling.
Park, residential communities the rest of the pavilion, the corridor ceiling.
Advertising signs, expressways and urban highways sound insulation screen.
Indoor partition and architectural decoration and so on.
Product Specification
| Thickness | Width | Length | Color |
|
1.2-12mm |
1.22m
1.56m 1.82m 2.1m |
30m 60m |
Transparent Lake Blue
Grass Green Tawny Milky White |
| The maximum width can be made 2.1 m special width,large quantity can be customized | Flat plate commonly used specification is: 1.22m * 2.44M | Special color, large quantity can be customized |
Product Performance Index
| Features | Unit | Indicator value |
| Specific Gravity | G/cm² | 1.2 |
| Light Transmission | % | 88 |
| Impact Strength | J/m | 850 |
| The Bending Strength | N/mm² | 100 |
| Tensile Strength | N/mm² | ≥60 |
| Modulus of Elasticity | M pa | 2400 |
| Tensile Stress at Break | M pa | ≥65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG · K | 1.17 |
| Heat Conductivity | W/m² · K | 0.2 |
| Heat Deflection Temperature | ℃ | 140 |
| Coefficient of Thermal Expansion | mm/m · ℃ | 0.067 |
| Range of Temperature | ℃ | -40~+120 |
| Effect of Soundproof | 10mm plate | Attenuation 30 dB |
Maintenance Cleaning/maintenance
If a joint sealant, grease, paint adhesion, PC board surface pollution, be sure to in the alcohol before hardening, with a soft cloth to remove;
Do not clean with benzene, gasoline, acetone or carbon tetrachloride, and avoid direct sunlight or in construction of bending force, in solvent cleaning, otherwise it will produce crack, the PC surface dust, dirt generally start with a soft cloth or sponge stick neutral agent is wiped,
reoccupy clear water is rinsed thoroughly, finally with soft dry cloth.

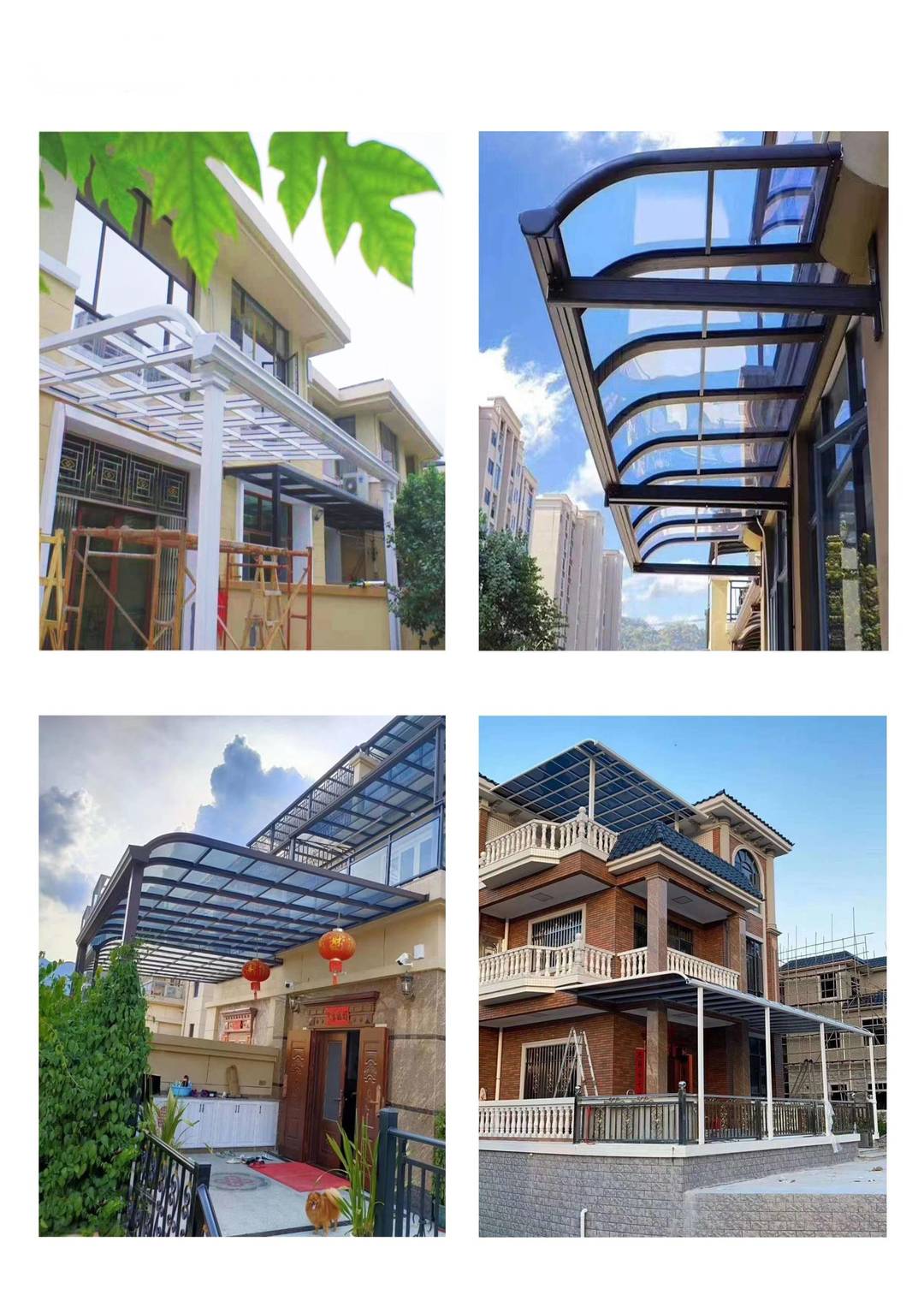

Project Case
